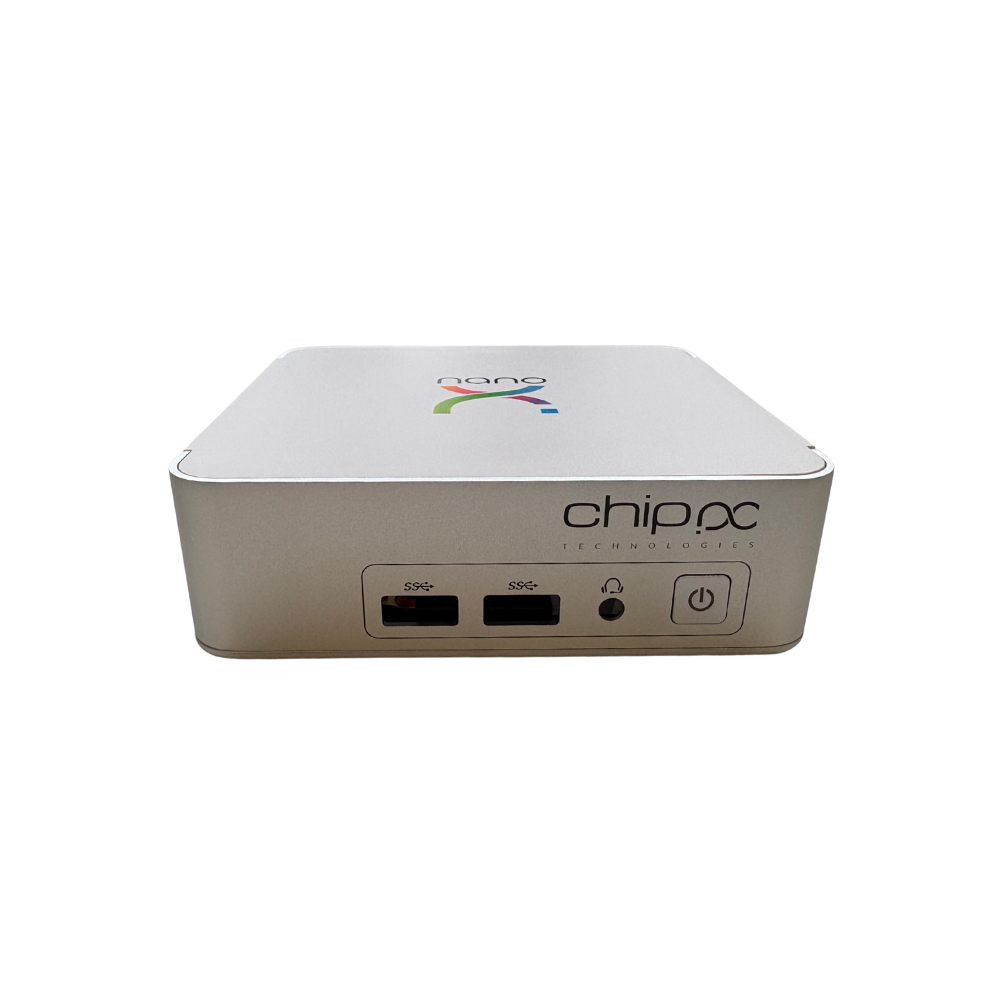

CUBEX Nano i5 512GB/16GB
The CUBEX Nano i5 512GB/16GB (CPN07582) is a compact Mini PC from Chip PC. It ships with Windows 11 Pro, Intel Core i5-1235U (1.3GHz, turbo up to 4.4GHz), 16 GB DDR4, 512 GB M.2 NVMe, and is managed with XcaliburW.
Intel Core i5-1235U (1.3GHz, turbo up to 4.4GHz)
Intel Iris Xe Graphics
512 GB M.2 NVMe
16 GB DDR4
1 x Type-C Full Function 2 x HDMI 2.0; HDMI -Up to 4096×2160@60Hz (4K) Type C – Up to 4096×2160@60Hz (4K)
RJ-45 & WiFI 6 -BT
1 Ethernet port 2.5G Realtek 8125BG for ultra-fast network connections 2 HDMI 2.0 ports (supporting 4K@60Hz with CEC) 2 USB 4.0 ports (PD3.0-compatible for fast charging and data) 2 USB 2.0 ports 1 DC IN power port
131 × 125 × 51 mm 800 g
Windows 11 Pro. Managed with XcaliburW.
The essentials, at a glance.
| CPU | Intel Core i5-1235U |
| Clock frequency | 1.3GHz |
| Maximum speed in Turbo mode | 4.4GHz |
| Number of hearts | Efficient-cores 4 Performance-cores 2 |
| Number of CPUs | 1 |
| Maximum number of CPUs | 1 |
| Main processor features | 8 Threads |
| Installed size | 10MB |
| Cache per processor | 10MB |
| Installed size | 16 GB (installed) / 32 GB (maximum) |
| Technology | DDR4 SDRAM |
| Effective memory speed | 2666MHZ |
| Nominal memory speed | 2666MHZ |
| Format | SO DIMM 260 pins |
| Locations | 2 (Total) / 1 (empty) |
| Configuration features | 1 X 16 GB |
| capacity | 1 x 512GB |
| Maximum capacity | up to 2TB M.2 NVMe flash module |
| Kind | Flash |
| Ability | 1 x M.2 2280 NVME GB |
| Graphics Processor | Intel Iris Xe Graphics. |
| Video interfaces | 2 x HDMI 2.0 4K@60Hz: Up to 3840*2160 2X Type C 1.4 8K@60Hz: Up to 8192×4608 |
| Interface type (bus) | M.2 Card |
| Ethernet controler | Realtek RTL8111HSH |
| Wireless LAN supported | Yes |
| Wireless NIC Card | Intel® WiFi 6 (802.11ax)- Dual Band: 2.4GHz+5GHz Bluetooth Version 5.2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2 |
| Features | Double flow (2 x 2) |
| Speakers included | No |
| Locations | 1 (total) / 1 (free) x M.2 Card – 2280 |
| Interfaces | 4 x USB3.0 2 x Type-C (support Intel® Thunderbolt™ 4) 2 x HDMI 2.0 1 x RJ45 Giga LAN 2 x HDMI 2.0 1 x DC IN |
| Accessories included | VESA support (sold separately) |
| Anti-theft/anti-intrusion protection | Safety lock slot (cable lock sold separately), padlock loop |
| Type of security housing | Kensington Security Lock (cable not included) |
| Device Type | AC adapter |
| Required voltage | AC 100-240 V (50/60 Hz) |
| Power supply provided | 65 Watt |
| Operating system provided | Windows 11 PRO |
| Width | 125 mm |
| Depth | 125 mm |
| Height | 45 mm |
| Weight | 800gr |
| Packed weight | 10pcs/Carton,14kg/carton |
| Minimum operating temperature | 0°C |
| Maximum operating temperature | 70°C |
| Operating humidity level | 10 – 85% (non-condensing) |
Complete technical specifications, physical and environmental details of the product.
