ID PC Plus 128GB/8GB – ThinX OS
The ID PC Plus 128GB/8GB – ThinX OS (CPN06933) is a fanless industrial Mini PC from Chip PC. It ships with ThinX OS, Intel Processor N100 (3.6 GHz), 8GB DDR4, 128GB NVMe, and is managed with Xcalibur Global.
145 × 127.5 × 34 mm Appro × . 700 g (net)
Intel Processor N100 (3.6 GHz)
Intel UHD Graphics
128GB NVMe
8GB DDR4
2× HDMI 2.0 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz); HDMI — up to 4096×2160@60Hz DisplayPort 1.4 — up to 4096×2160@60Hz
2x 2.5GbE LAN; 2x COM (RS232/RS485)

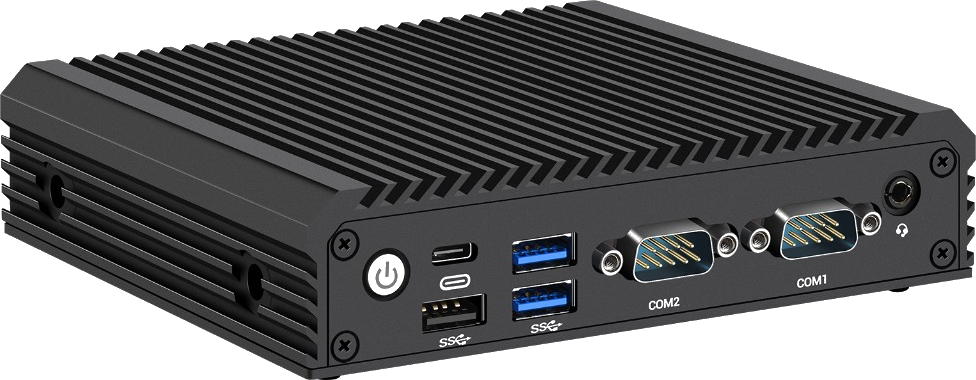

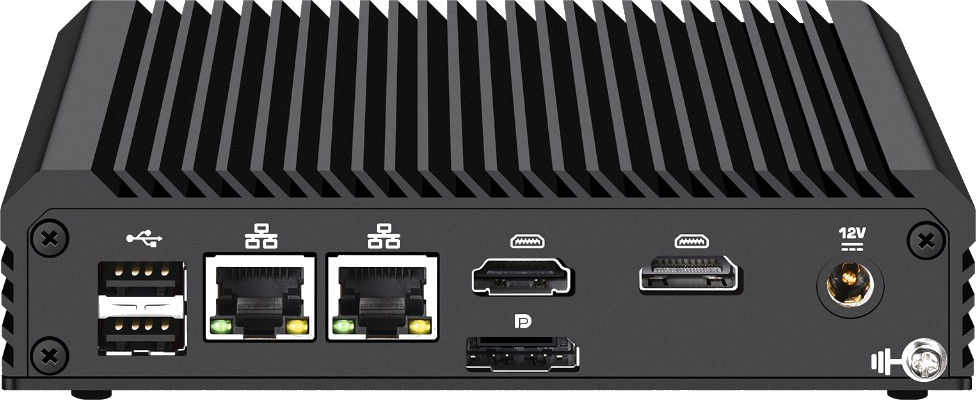

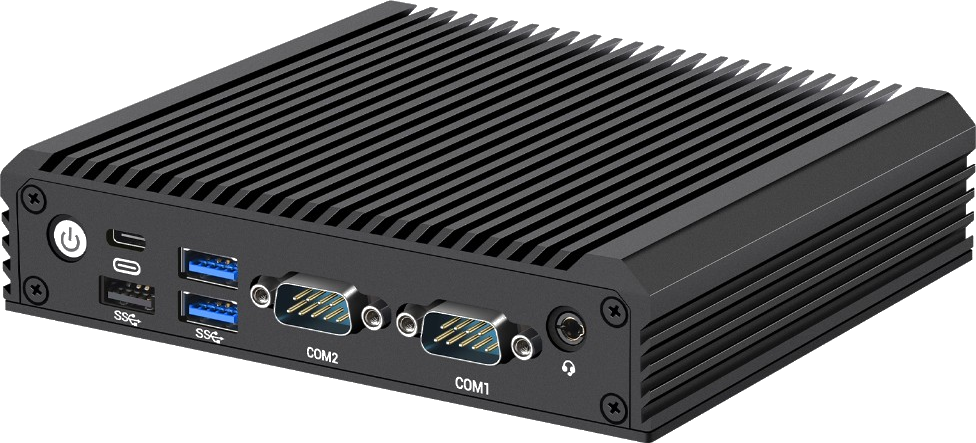

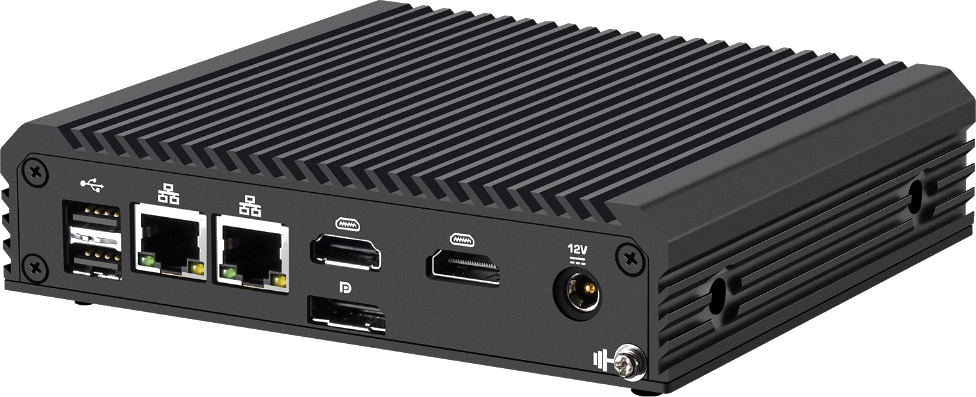

Front: 1× Power button, 3× USB 3.0, 1× USB-C 3.0, 1× Audio combo (mic/headphone), 2× RS232/RS485 (COM1/COM2) Rear: 2× 2.5GbE LAN, 2× USB 2.0, 2× HDMI 2.0, 1× DP 1.4, 1× DC IN (12V), grounding terminal
145 × 127.5 × 34 mm Appro × . 700 g (net)
ThinX OS. Managed with Xcalibur Global.
The essentials, at a glance.
| CPU | Intel® Processor N-series |
| Clock frequency | 3.6 GHz |
| Maximum speed in Turbo mode | 3.6 GHz |
| Number of hearts | Quad-core (4) |
| Number of CPUs | 1 |
| Maximum number of CPUs | 1 |
| Main processor features | 4 Threads |
| Installed size | 6 MB |
| Cache per processor | 6 MB |
| Installed size | 8 GB (installed) / 16 GB (maximum) |
| Technology | DDR4 SDRAM |
| Effective memory speed | 2933 MHz |
| Nominal memory speed | 3200MHz |
| Format | SO DIMM 260 pins |
| Locations | 1 (Total) |
| Configuration features | 1 x 8 GB |
| capacity | 1 x 128 GB |
| Maximum capacity | up to 512 M.2 Sata flash module |
| Kind | Flash |
| Ability | 1 x M.2 2280 SATA SSD |
| Graphics Processor | Intel UHD Graphics |
| Video interfaces | 3 x HDMI 2.0- Up to 4096×2160@60Hz |
| Interface type (bus) | M.2 Card |
| Ethernet controler | Realtek RTL8111HSH |
| Wireless LAN supported | Yes |
| Wireless NIC Card | Intel® WiFi 6 (802.11ax)- Dual Band: 2.4GHz+5GHz Bluetooth Version 5.2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2 |
| Features | Double flow (2 x 2) |
| Speakers included | No |
| Locations | 1 (total) x M.2 Card – 2230 |
| Interfaces | 4 x USB 3.0 port 1 x TypE C 1 x microphone(3.5mm) ; 1 x headphone(3.5mm) 2 x RJ45 Gigabit LAN port 1 x COM232 1x COM232/422/485( 3 x HDMI 2.0 |
| Accessories included | VESA support WALL Mount |
| Anti-theft/anti-intrusion protection | Safety lock slot (cable lock sold separately), padlock loop |
| Type of security housing | Kensington Security Lock (cable not included) |
| Device Type | AC adapter |
| Required voltage | AC 100-240 V (50/60 Hz) |
| Power supply provided | 35 Watt |
| Operating system provided | ThinX OS |
| Width | 168 mm |
| Depth | 110mm |
| Height | 22 mm |
| Weight | 600gr |
| Packed weight | 10pcs/Carton,6kg/carton |
| Minimum operating temperature | -10°C |
| Maximum operating temperature | 55°C |
| Operating humidity level | 20 – 80% (non-condensing) |
Complete technical specifications, physical and environmental details of the product.
