ID PC Ultra Slim ThinX OS 128GB/8GB
The ID PC Ultra Slim by Chip PC Technologies is an industrial mini PC for space-constrained deployments.
Featuring an Intel N150, 128GB storage and 8GB DDR4 with ThinX OS, it is built for efficient thin-client and edge use.
128GB M.2 SATA storage (expandable) and 8GB DDR4 memory.

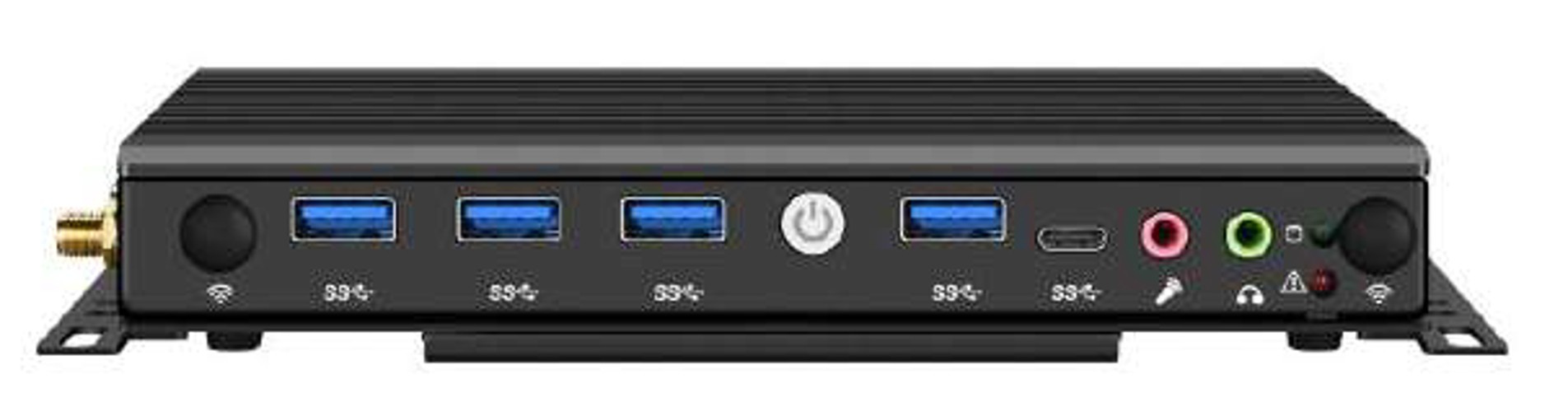

Power button/LED, 4x USB 3.0, Type-C, audio jacks.

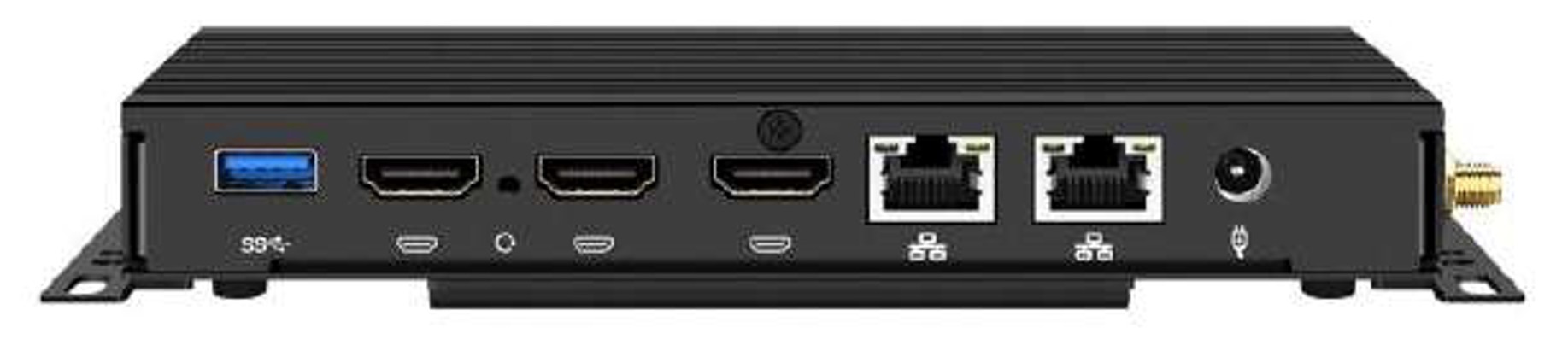

Display outputs, LAN and industrial I/O for embedded use.
The essentials, at a glance.
| CPU | Intel® Processor N-series |
| Clock frequency | 3.6 GHz |
| Maximum speed in Turbo mode | 3.6 GHz |
| Number of hearts | Quad-core (4) |
| Number of CPUs | 1 |
| Maximum number of CPUs | 1 |
| Main processor features | 4 Threads |
| Installed size | 6 MB |
| Cache per processor | 6 MB |
| Installed size | 8 GB (installed) / 16 GB (maximum) |
| Technology | DDR4 SDRAM |
| Effective memory speed | 2933 MHz |
| Nominal memory speed | 3200MHz |
| Format | SO DIMM 260 pins |
| Locations | 1 (Total) |
| Configuration features | 1 x 8 GB |
| capacity | 1 x 128 GB |
| Maximum capacity | up to 512 M.2 Sata flash module |
| Kind | Flash |
| Ability | 1 x M.2 2280 SATA SSD |
| Graphics Processor | Intel UHD Graphics |
| Video interfaces | 3 x HDMI 2.0- Up to 4096×2160@60Hz |
| Interface type (bus) | M.2 Card |
| Ethernet controler | Realtek RTL8111HSH |
| Wireless LAN supported | Yes |
| Wireless NIC Card | Intel® WiFi 6 (802.11ax)- Dual Band: 2.4GHz+5GHz Bluetooth Version 5.2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2 |
| Features | Double flow (2 x 2) |
| Speakers included | No |
| Locations | 1 (total) x M.2 Card – 2230 |
| Interfaces | 4 x USB 3.0 port 1 x TypE C 1 x microphone(3.5mm) ; 1 x headphone(3.5mm) 2 x RJ45 Gigabit LAN port 1 x COM232 1x COM232/422/485( 3 x HDMI 2.0 |
| Accessories included | VESA support WALL Mount |
| Anti-theft/anti-intrusion protection | Safety lock slot (cable lock sold separately), padlock loop |
| Type of security housing | Kensington Security Lock (cable not included) |
| Device Type | AC adapter |
| Required voltage | AC 100-240 V (50/60 Hz) |
| Power supply provided | 35 Watt |
| Operating system provided | ThinX OS |
| Width | 168 mm |
| Depth | 110mm |
| Height | 22 mm |
| Weight | 600gr |
| Packed weight | 10pcs/Carton,6kg/carton |
| Minimum operating temperature | -10°C |
| Maximum operating temperature | 55°C |
| Operating humidity level | 20 – 80% (non-condensing) |
Complete technical specifications, physical and environmental details of the product.
