iX PC Dual LAN 128GB/8GB – Windows 11 IoT
The iX PC Dual LAN 128GB/8GB – Windows 11 IoT (CPN07294) is a fanless thin client from Chip PC. It ships with Windows 11 IoT, Intel Celeron N5095, 8GB DDR4 (SODIMM, max 32GB), 128GB M.2 2280 SATA SSD, and is managed with XcaliburW.
Intel Celeron N5095
Intel UHD Graphics
128GB M.2 2280 SATA SSD
8GB DDR4 (SODIMM, max 32GB)
HDMI 2.0 + DisplayPort 1.4 + VGA
2 x RJ45 Gigabit LAN (10/100/1000 Mbps)

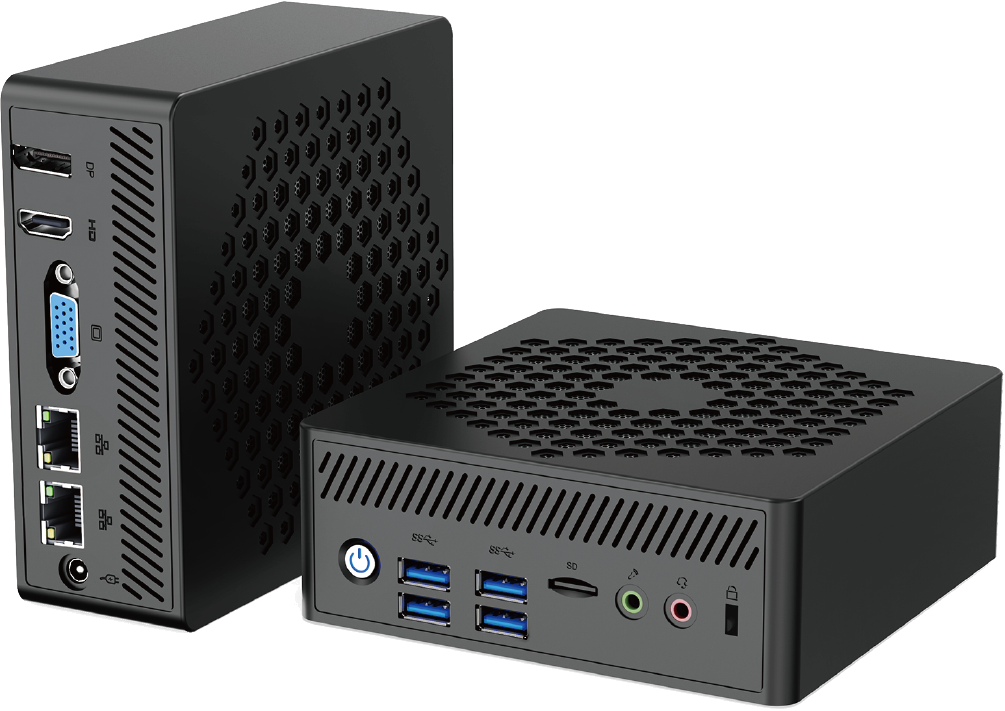

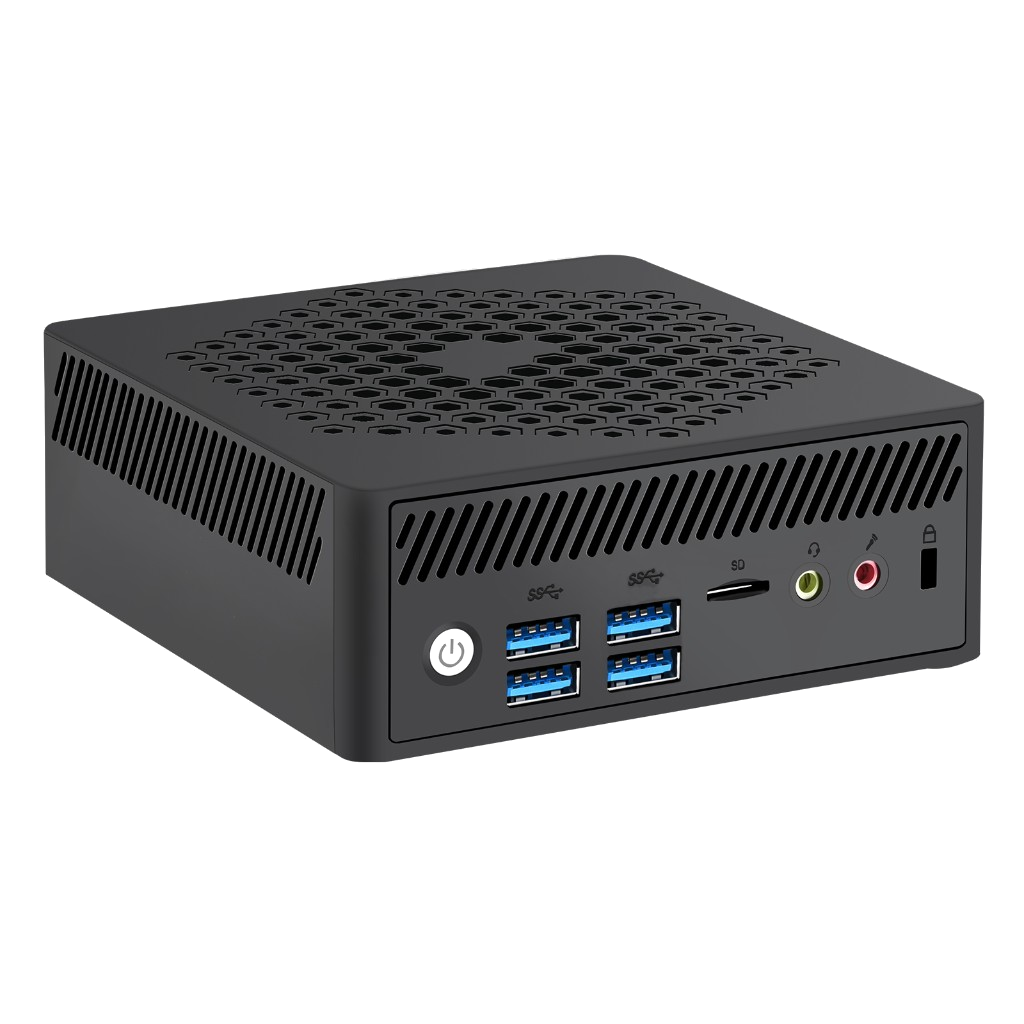

Front Panel: 1 x Power button 1 x Line out (3.5mm) 1 x MIC IN (3.5mm) 1 x Micro SD card slot 4 x USB 3.0 Back Panel: 1 x DC IN 1 x DisplayPort 1.4 1 x HDMI 2.0 1 x VGA 2 x RJ45 Gigabit LAN (10/100/1000 Mbps)
Windows 11 IoT. Managed with XcaliburW.
The essentials, at a glance.
| CPU | Intel Celeron N5095 |
| Clock frequency | 2.0 GHz up to 2.9 GHz |
| Number of cores | Quad-core (4) |
| Number of threads | 4 Threads |
| Graphics | Intel UHD Graphics |
| Installed size | 4 MB |
| Installed size | 8GB DDR4 |
| Technology | DDR4 SODIMM 2666/2933 MHz |
| Maximum capacity | 1 x SODIMM DDR4 slot, max 32GB |
| Capacity | 128GB M.2 SATA SSD |
| Slot | 1 x M.2 2280 SATA/NVMe SSD |
| Graphics Processor | Intel UHD Graphics |
| Video interfaces | HDMI 2.0 + DisplayPort 1.4 + VGA |
| Ethernet | 2 x RJ45 Gigabit LAN (10/100/1000 Mbps) |
| Wireless LAN supported | M.2 PCIe port (Wi-Fi module not installed) |
| WiFi | Optional — not included (wireless module slot available) |
| Data Link Protocol | Gigabit Ethernet |
| Speakers included | No |
| Audio jacks | Line out + MIC IN (3.5mm) |
| USB | 4 x USB 3.0 (front) |
| Interfaces | Front Panel: 1 x Power button 1 x Line out (3.5mm) 1 x MIC IN (3.5mm) 1 x Micro SD card slot 4 x USB 3.0 Back Panel: 1 x DC IN 1 x DisplayPort 1.4 1 x HDMI 2.0 1 x VGA 2 x RJ45 Gigabit LAN (10/100/1000 Mbps) |
| Output | 12V 2.5A DC |
| Input | 100–240V AC (adapter included) |
| Operating system provided | Windows 11 IoT |
| OS support | Windows 11 / Windows 10 / Linux |
| Firmware | UEFI |
| Wake on LAN | Yes |
| Auto power on | Auto power on when power failure |
| Network boot | PXE |
| Chassis dimensions | 123 x 123 x 45 mm |
| Chassis material | Plastic (fanless) |
| Chip PC model | WIX41288 |
| Platform | AC8-N (Fanless) |
| Part number | CPN07294 |
| EAN | 818391008983 |
| Bundle | IXPC — no display, keyboard or mouse |
| Accessories | VESA mount (70×70/100x100mm), HDMI cable, power adapter |
| Compliance | RoHS |
