iX PC Plus LAN ThinX OS
The iX PC Plus LAN ThinX OS (CPN07579) is a fanless thin client from Chip PC. It ships with ThinX OS, Intel Processor N100 (2.8 GHz, turbo up to 3.4GHz), LPDDR5 8GB, 128GB M.2 SATA SSD, and is managed with Xcalibur Global.
Intel Processor N100 (2.8 GHz, turbo up to 3.4GHz)
Intel UHD Graphics
128GB M.2 SATA SSD
LPDDR5 8GB
1 x HDMI 2 x Display Port; HDMI – Up to 4096×2160@60Hz Display Port – Up to 4096×2160@60Hz
RJ45

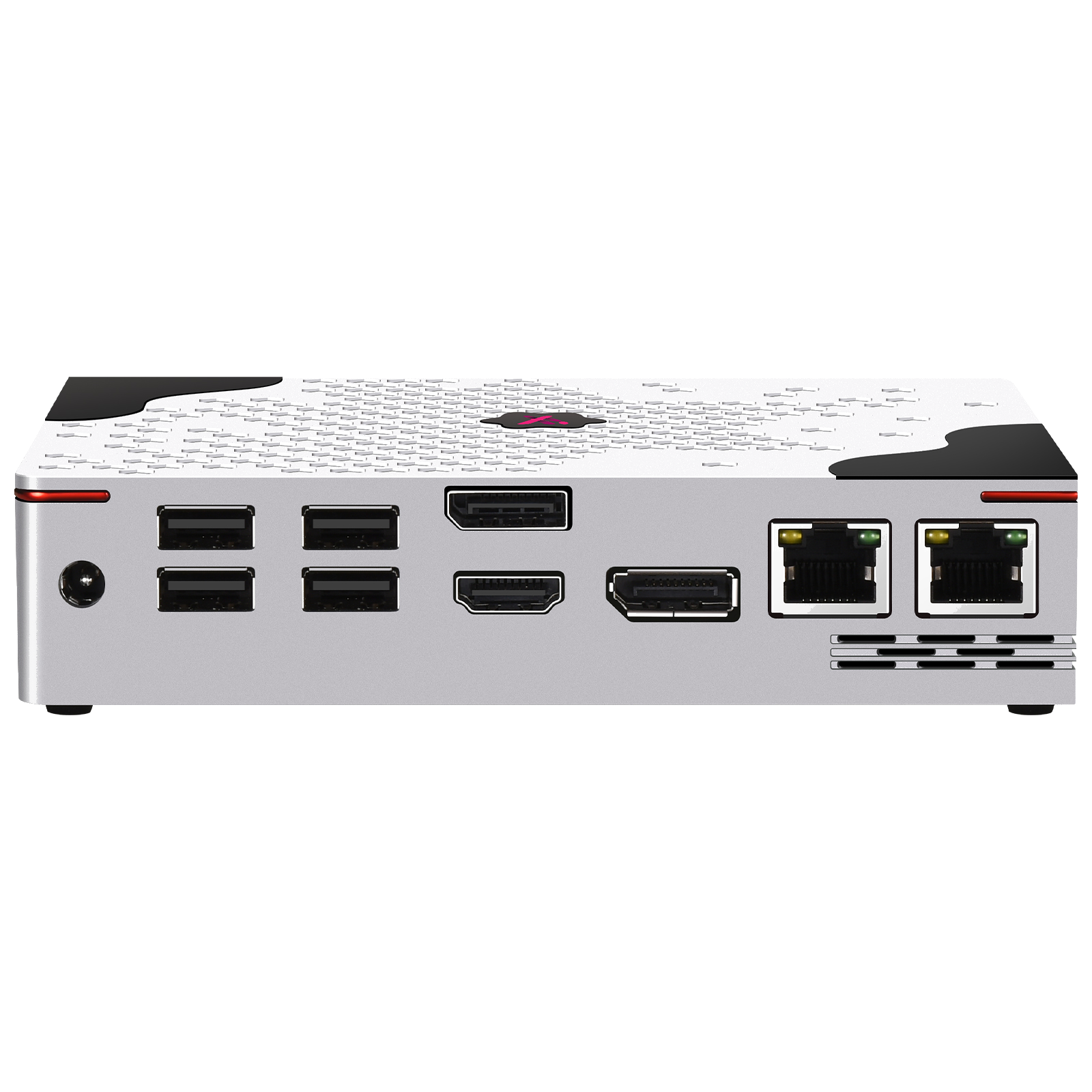

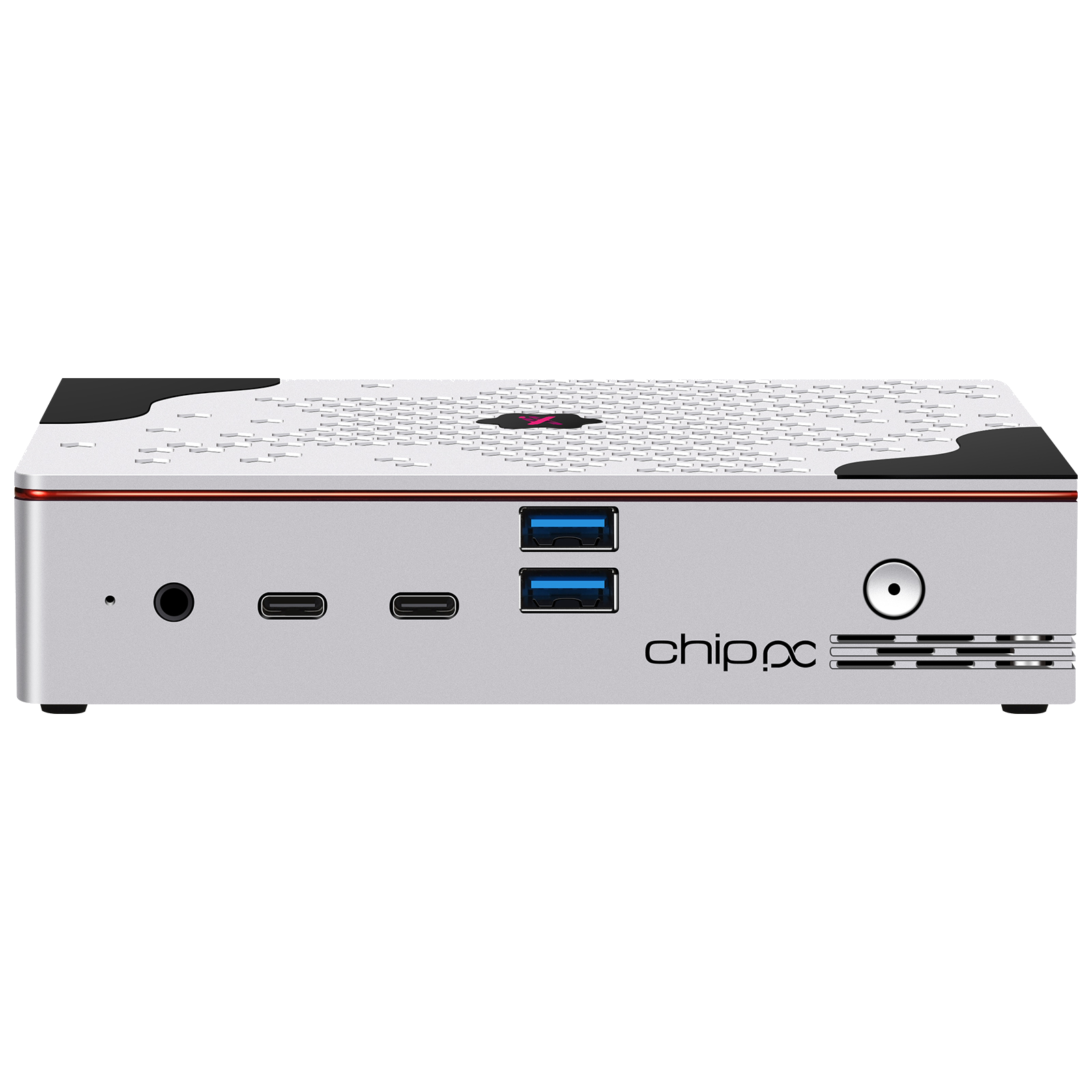

1x Power button, power LED 2 x USB3.2 10GB/S 2 x USB-C 10GB/S 4 x USB 2.0 1 x Combo Audio Port (3.5mm) 1 x Rj45 2.5 Gb 1 x HDMI 2.0 2 x Display Port1.4a 1 x DC IN（12V） Kensington Lock
147 mm × 106 mm × 35 mm
ThinX OS. Managed with Xcalibur Global.
The essentials, at a glance.
| CPU | Alder Lake-N N100 6W 4C/4T Max3.4GHz |
| Clock frequency | 2.8 GHz |
| Maximum speed in Turbo mode | 3.4GHz |
| Number of hearts | Quad-core (4) |
| Number of CPUs | 1 |
| Maximum number of CPUs | 1 |
| Main processor features | 4 Threads |
| Installed size | 6 MB |
| Cache per processor | 6 MB |
| Installed size | LPDDR5 8GB (onboard memory) Up to 16G |
| Technology | LPDDR5-4800, 8GB |
| Effective memory speed | 4800 MHz |
| Nominal memory speed | 4800 MHz |
| Format | LPDDR5 onboard memory |
| Locations | 1 (Total) |
| Configuration features | Onboard |
| capacity | 128GB M.2 SATA SSD (included) |
| Maximum capacity | 128GB M.2 SATA SSD (included) |
| Kind | Flash |
| Ability | 128GB M.2 SATA SSD (included) 1 x M.2 SATA/NVMe expansion up to 2 TB (optional) |
| Graphics Processor | Intel UHD Graphics |
| Video interfaces | 1 x HDMI 2.0- Up to 4096×2160@60Hz 2 x Display Port1.4 – Up to 4096×2160@60Hz |
| Interface type (bus) | RJ45: 10/100/1000/2500 Mbps |
| Ethernet controler | 1 x RJ45 |
| WiFi | Optional — not included (wireless module slot available) |
| Compatible wireless protocols (when a WiFi module is fitted) | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2 |
| Features | Double flow (2 x 2) |
| Speakers included | No |
| Locations | 1 x (Onboard ) 1 x M.2 Card – 2230 (Optional) |
| Interfaces | 2 x USB3.2 10GB/S 2 x USB-C 10GB/S 4 x USB 2.0 1 x Combo Audio Port (3.5mm) 1 x RJ45 2.5GB 1 x HDMI 2.0 2 x Display Port1.4 1 x DC IN |
| Accessories included | VESA support (sold separately) |
| Anti-theft/anti-intrusion protection | Safety lock slot (cable lock sold separately), padlock loop |
| Type of security housing | Kensington Security Lock (cable not included) |
| Device Type | AC adapter |
| Required voltage | AC 100-240 V (50/60 Hz) |
| Power supply provided | DC+12V 2.5A |
| Operating system provided | ThinX OS Linux-based OS |
| Width | 147 mm |
| Depth | 106 mm |
| Height | 35 mm |
| Weight | 300 gr |
| Packed weight | 1 kg |
| Minimum operating temperature | 0° C |
| Maximum operating temperature | 60° C |
| Operating humidity level | Humidity: 10% ~ 90% RH @40°C (non-condensing) |
