iX PC Plus SFP ThinX OS Linux-based OS

OS:ThinX OS Linux-based OS

Processor: Intel® Processor N100 6M Cache, up to 3.40 GHz

Storage: 128GB eMMC

Memory: LPDDR5 8GB (onboard memory) Up to 16G

Network : Gigabit SFP

SKU: CPN07543

EAN:818391009560

DESCRIPTION

iX PC PLUS SFP Model – Fanless Thin Client with ThinX OS and Managed by Xcalibur Global

Compact, High-Performance Thin Client with SFP Connectivity

The iX PC PLUS SFP Model by Chip PC Technologies is a fanless thin client designed for secure, silent, and efficient performance. Powered by ThinX OS (Linux-based) and equipped with SFP (fiber network) connectivity, this device delivers high-speed, reliable networking. Managed by Xcalibur Global, it provides seamless IT control, making it ideal for modern workspaces and virtual desktop environments.

Key Features

Operating System: ThinX OS – lightweight, secure, and optimized for thin client applications.
Management: Xcalibur Global offers centralized monitoring, updates, and device management.
Design: Fanless, compact, and durable, ideal for noise-sensitive environments.
Performance: 8GB LPDDR5 RAM and 128GB eMMC, expandable via an M.2 slot.
Connectivity:
- SFP Port: Ultra-fast, secure fiber networking for high-performance data transfer.
- Comprehensive ports: 2x USB 3.2, 2x USB-C, 4x USB 2.0, HDMI 2.0, 2x DisplayPort 1.4, and an audio/mic jack.
Security: Integrated TPM 2.0 for encrypted data storage and secure device authentication.

Why Choose the iX PC PLUS SFP Model?

Silent Operation: The fanless design ensures quiet and reliable performance in sensitive environments.
High-Speed Connectivity: SFP fiber provides reliable and secure networking for demanding applications.
Eco-Friendly: Low power consumption reduces operational costs and supports sustainability.
Virtual Desktop Ready: Fully compatible with RDS, Citrix, and VMware for optimized virtual desktop environments.

Applications

Corporate Offices: Ideal for high-performance and secure enterprise environments with fiber connectivity.
Data Centers: Perfect for environments requiring fast, reliable fiber networking.
Healthcare: Silent, secure, and compliant with medical regulations.

PRODUCT VIDEO

PRODUCT SPECIFICATIONS

Operating System

ThinX OS Linux-based OS

Processor

Intel® Processor N100 6M Cache, up to 3.40 GHz

Storage

128GB eMMC(onboard)

M.2 SATA\NVMe Up to 2 TB (Optional)

Memory

LPDDR5 8GB (onboard memory)

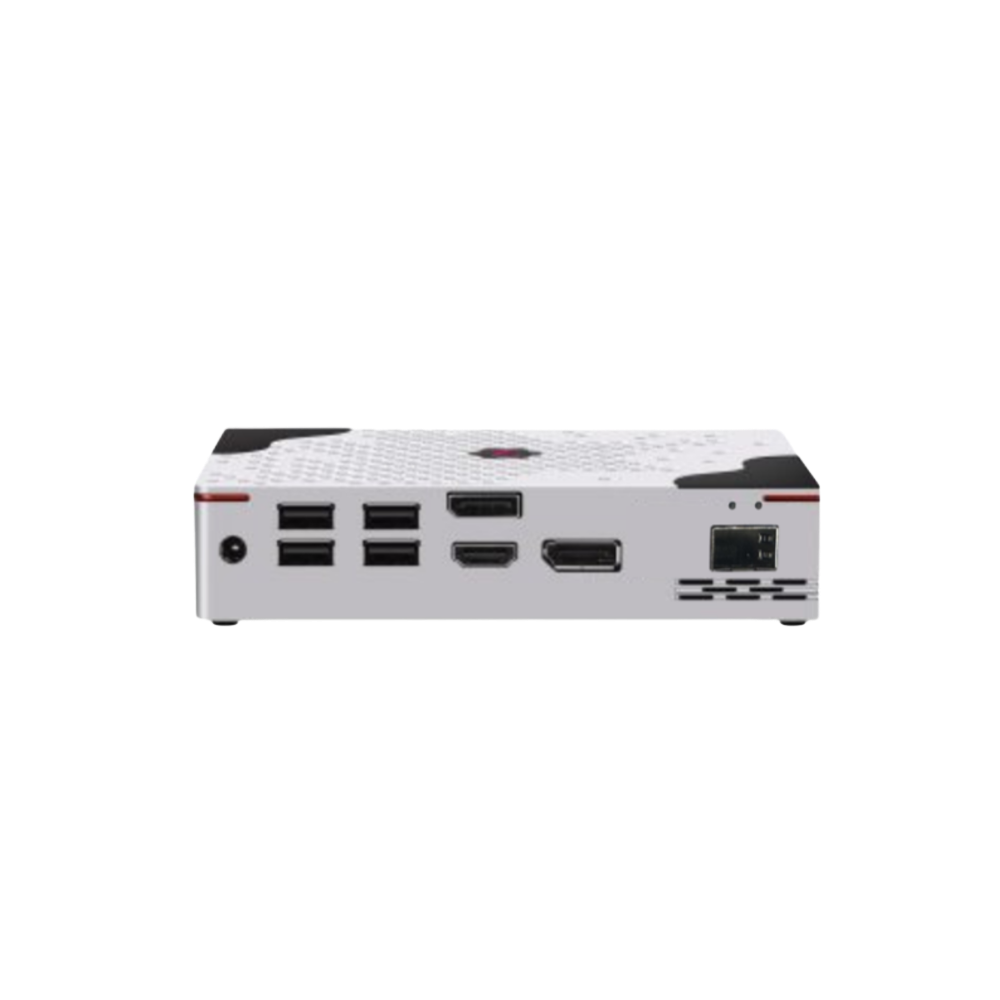

Input/Output ports

1x Power button, power LED

2 x USB3.2 10GB/S

2 x USB-C 10GB/S

4 x USB 2.0

1 x Combo Audio Port (3.5mm)

1 x Gigabit SFP

1 x HDMI 2.0

2 x Display Port1.4a

1 x DC IN（12V）

Kensington Lock

Display Support

1 x HDMI

2 x Display Port

Resolutions

HDMI – Up to 4096×2160@60Hz

Display Port – Up to 4096×2160@60Hz

Audio Support

Combo Audio Port (3.5mm, 1/8 inch) Audio Jack

Network

SFP (Small Form-factor Pluggable)

Power

Device input: 100～240VAC@50/60HZ

Device Output: 12VDC/5A external power adapter

Humidity

Operating Temperature: 0 ~ 60° C
Storage Temperature: -20 ~ 85° C
Humidity: 10% ~ 90% RH @40°C (non-condensing)

Dimensions

147mm X 106mm X35mm

Warranty

Three-year hardware warranty Optional extended Warranty for years 4 & 5.

Processor

CPU	Alder Lake-N N100 6W 4C/4T Max3.4GHz
Clock frequency	2.8 GHz
Maximum speed in Turbo mode	3.4GHz
Number of hearts	Quad-core (4)
Number of CPUs	1
Maximum number of CPUs	1
Main processor features	4 Threads

Cache memory

Installed size	6 MB
Cache per processor	6 MB

RAM

Installed size	LPDDR5 8GB (onboard memory) Up to 16G
Technology	LPDDR5-4800, 8GB
Effective memory speed	4800 MHz
Nominal memory speed	4800 MHz
Format	LPDDR5 onboard memory
Locations	1 (Total)
Configuration features	Onboard

Storage

capacity	128GB eMMC(Onboard )
Maximum capacity	128GB eMMC(Onboard )
Kind	Flash
Ability	128GB eMMC (Onboard ) 1 x M.2 SATA\NVMe Up to 2 TB (Optional)

Graphics Controller

Graphics Processor	Intel UHD Graphics
Video interfaces	1 x HDMI 2.0- Up to 4096×2160@60Hz 2 x Display Port1.4 – Up to 4096×2160@60Hz

Networks

Interface type (bus)	Gigabit SFP 1Gb
Ethernet controler	1 x Gigabit SFP
Wireless LAN supported	YES
Wireless NIC Card	Not installed
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2
Features	Double flow (2 x 2)

Audio output

Speakers included	No

Extension/connectivity

Locations	1 x (Onboard ) 1 x M.2 Card – 2230 (Optional)
Interfaces	2 x USB3.2 10GB/S 2 x USB-C 10GB/S 4 x USB 2.0 1 x Combo Audio Port (3.5mm) 1 x Gigabit SFP 1 x HDMI 2.0 2 x Display Port1.4 1 x DC IN

Miscellaneous

Accessories included	VESA support (sold separately)
Anti-theft/anti-intrusion protection	Safety lock slot (cable lock sold separately), padlock loop
Type of security housing	Kensington Security Lock (cable not included)

Power Supply

Device Type	AC adapter
Required voltage	AC 100-240 V (50/60 Hz)
Power supply provided	DC+12V 2.5A

Operating System / Software

Operating system provided	ThinX OS Linux-based OS

Dimensions and weight

Width	147 mm
Depth	106 mm
Height	35 mm
Weight	300 gr
Packed weight	1 kg

Environmental characteristics

Minimum operating temperature	0° C
Maximum operating temperature	60° C
Operating humidity level	Humidity: 10% ~ 90% RH @40°C (non-condensing)
